XF180 Filter/XF250 Filter

XF180 Filter/XF250 Filter

XF180 filter and XF250 filter concentric square composite filter with multiple filtration design ensures the filtration of harmful particles and gases from all sides.



Features:

Primary filter has a larger dust holding area

Folded filter cartridge with higher dirt-holding capacity

Three separate filtration systems each doing its own job

Composite activated carbon Filter core to eliminate odor

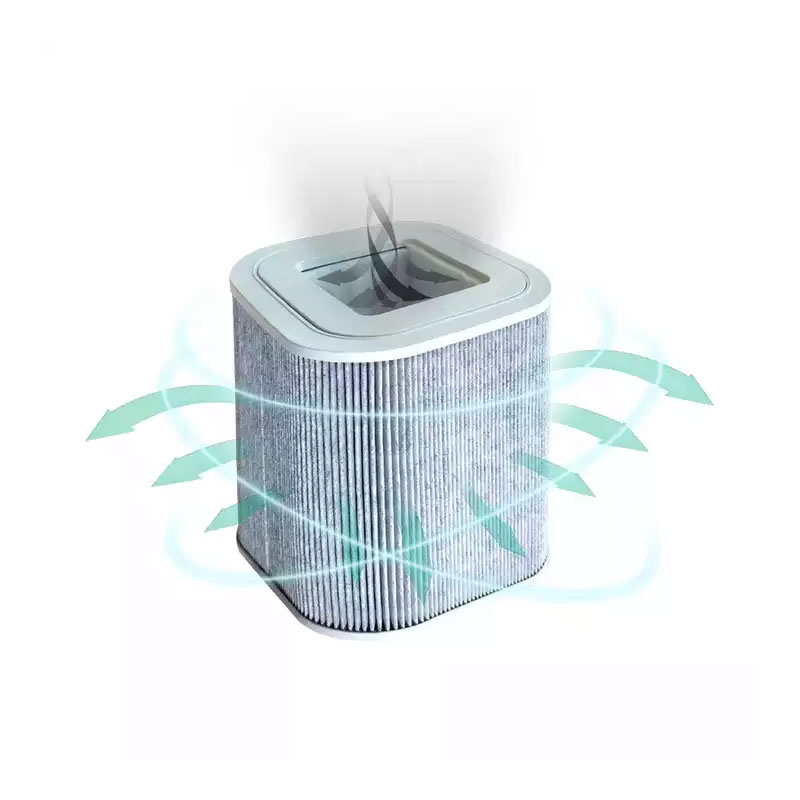

Concentric square filter and exhaust system collects soot from all sides

Quick Quote
Product Details
XF180 Filter Parameters
Application Models : XF180 Fume Extractor
Primary Filter H11 HEPA Filter Activated Carbon Filter
XF-180 primary filter cotton XF-180 medium-effect filter core XF-180 Hepa high-efficiency activated carbon integrated filter
Size 501*178*9mm Size 193*193*196.5mm Size 238*238*197.8mm
Material Superfine polyester fiber Material Polypropylene filter paper type HEPA cartridge Material HEPA filter + coconut shell activated carbon
Filtration capacity : PM50 Filter Filtration capacity : PM0.3 Filter Filtration capacity : Traps Harmful Gaser
XF250 Filter Parameters
Application Models : XF250 Fume Extractor
Primary Filter H11 HEPA Filter Activated Carbon Filter
XF-250 primary filter cotton XF-250 medium-effect filter core XF-250 Hepa high-efficiency activated carbon integrated filter

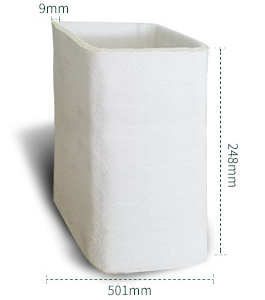

Size 501*248*9mm Size 193*193*266.5mm Size 238*238*267.8mm
Material Superfine polyester fiber Material Polypropylene filter paper type HEPA cartridge Material HEPA filter + coconut shell activated carbon
Filtration capacity : PM50 Filter Filtration capacity : PM0.3 Filter Filtration capacity : Traps Harmful Gaser

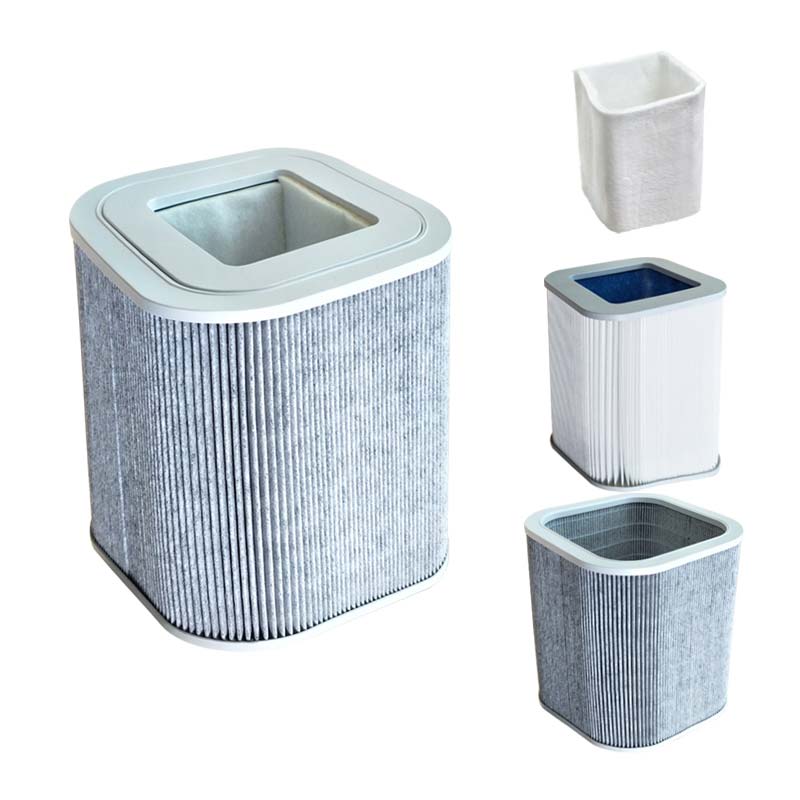

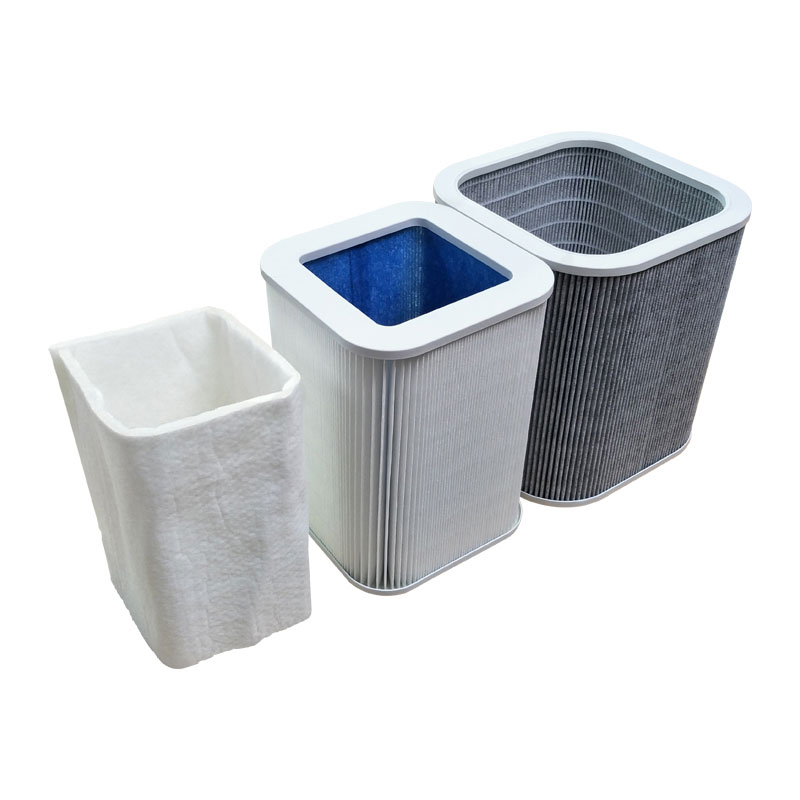

XF-180 XF-250 Solder Fume Extractor Filter XF180 Filter And XF250 Filter Combination
1st layer Primary Filter
Replacement period 7-30 Days
Filtration capacity Filters large particles over 50 microns from solder fumes
2st Layer H11 HEPA Filter
Replacement period 3-6 Months
Filtration capacity Filters fine particles exceeding 0.3 microns from solder fumes with 99.97% filtration efficiency
3st Layer Activated Carbon Filter
Replacement period 6-12 Months
Filtration capacity The filtration efficiency of fine particles above 0.3 microns in solder fumes is 99.97%; the filtration efficiency of harmful gases is 95%.
